Analysis of Partial Discharges in Oil-Impregnated Transformer Paper Insulation and PET-G Insulation

Kameli, Sayed Mohammad, Abuelrub, Abdelaziz, Saleh, Mohammad Al Shaikh, Refaat, Shady S., Ghrayeb, Ali, Abu-Rub, Haitham and Olesz, Marek (2025) Analysis of Partial Discharges in Oil-Impregnated Transformer Paper Insulation and PET-G Insulation. IEEE Open Journal of Instrumentation and Measurement. pp. 1-11. ISSN 2768-7236
Copy

Partial discharge (PD) is a widespread phenomenon instigated in power transformer (PT) insulation systems. PDs are triggered by voids that vary in size and position within the PT insulation. The electrical characteristics of those damaging, PD-causing cavities must be well understood, to accelerate the development of advanced PD detection techniques. Thus, the impact of varying the radius and position of spherical air voids on the characteristics of PDs in PTs is examined using a 3D finite element analysis (FEA) model designed in COMSOL Multiphysics. The spherical voids are positioned between two windings of a 512 kV, three-phase (3ϕ) PT. The peak electric field (EF) and aggregate energy in the FEA model are used in conjunction with laboratory measurements of the apparent discharge magnitude, for detailed analysis of Polyethylene Terephthalate Glycol (PET-G) based cylindrical voids with different heights. Simulations demonstrate that the inception of PD activity in the PT model occurs for spherical voids with a radius exceeding 1 mm. Furthermore, the most severe PDs occur within the press-board insulation, adjacent to the uppermost part of the innermost windings. Experiments demonstrate that a significant increase in PD activity was observed for PET-G based cylindrical voids with heights exceeding 1 mm.


picture_as_pdf

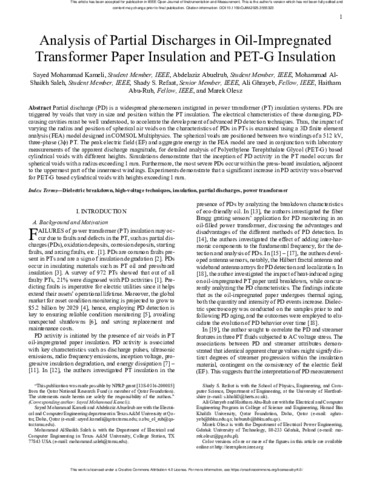

Analysis_of_Partial_Discharges_in_Oil-Impregnated_Transformer_Paper_Insulation_and_PET-G_Insulation.pdf
subject
Published Version
Available under Creative Commons: BY 4.0

View Download
