A Dual-Polarized Planar Antenna Array Differentially-Fed by Orthomode Transducer

Yang, Q., Gao, S., Luo, Q., Wen, L., Ren, X., Wu, J., Ban, Y. -L. and Yang, X. (2021) A Dual-Polarized Planar Antenna Array Differentially-Fed by Orthomode Transducer. IEEE Transactions on Antennas and Propagation. ISSN 0018-926X
Copy

This paper presents a new design of a differentially-fed substrate integrated planar antenna array with dual-polarization. Compared with the traditional dual-polarized antenna arrays, the proposed array antenna has the advantages of simple configuration, high cross-polarization discrimination (XPD) and high gain. 2×2-element subarray design with a via-loaded crossover structure is used, which reduces the complexity of the array antenna. The operation bandwidth is improved by generating three resonances in the subarray. An 8×8 antenna array is designed, prototyped and tested to exemplify its potential applications in large dual-polarized antenna arrays. A planar orthomode transducer is used to achieve differential excitation for the antenna array. The measured results show that the proposed antenna array has an impedance bandwidth of 19.2–20.7 GHz for |S11|<-10 dB and port isolation higher than 20 dB. The array antenna exhibits a high XPD of 43 dB and a flat gain about 22.2 dBi within the bandwidth.


picture_as_pdf

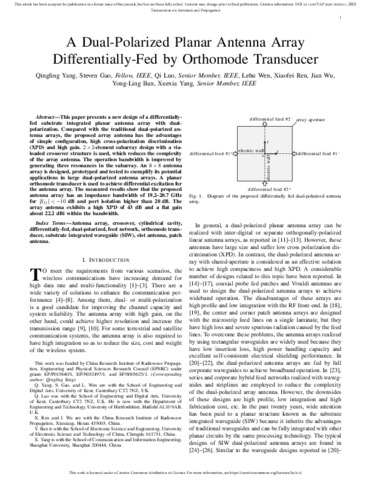

A_Dual_Polarized_Planar_Antenna_Array_Differentially_Fed_by_Orthomode_Transducer.pdf
subject
Published Version
Available under Creative Commons: BY 4.0
