A Wideband Triple-Mode Differentially-Fed Microstrip Patch Antenna
A wideband differentially-fed microstrip patch antenna (MPA) with tripe-resonant modes is presented in this letter. The proposed triple-mode MPA is realized by combining two dual-mode MPAs (MPA-I and MPA-II) with different resonant frequency ratios. Firstly, the TM0,1 mode and TM0,1/2 mode of dual-mode MPA-I can be concurrently excited by adding a pair of coupling shorted patches beside the strip MPA. The ratio of f0,1/2/f0,1 can be easily adjusted by moving the shorting pins between the strip MPA and shorted patches. Secondly, by properly designing the dimensions of a conventional MPA, the TM0,1 and TM2,1 modes of dual-mode MPA-II are simultaneously excited. To further reduce the ratio of f2,1/f0,1, four slots are elaborately etched on the conventional MPA. Finally, by combining the two dual-mode MPAs, a triple-mode MPA with the frequency ratio of f0,1/2:f2,1:f0,1 = 1.2:1.1:1 is realized. To verify the design concept, a prototype of triple-mode MPA was fabricated and measured. Experimental results show that the proposed microstrip antenna achieves a wide bandwidth of 26.5%, a low cross-polarization of -23 dB, and high harmonic suppression.
Item Type | Article |
---|---|
Additional information | © 2021 IEEE. This is the accepted manuscript version of an article which has been published in final form at https://dx.doi.org/10.1109/LAWP.2021.3074302 |
Date Deposited | 15 May 2025 14:36 |
Last Modified | 06 Jun 2025 23:09 |
-

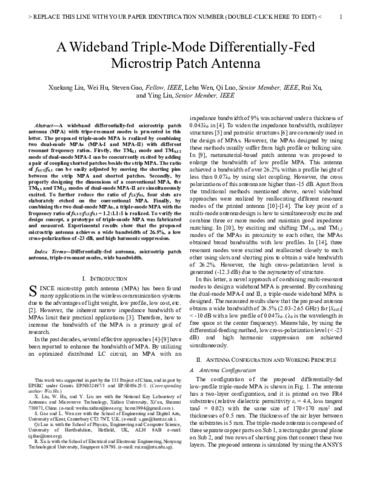

picture_as_pdf - 09409956_accepted_version.pdf
-
subject - Submitted Version
-
copyright - Available under Unspecified
